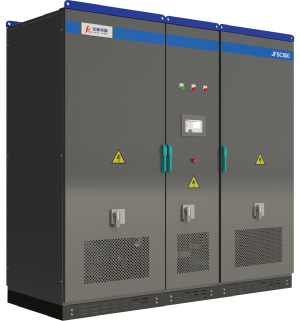

JFSC500 Storage Reversible Rectifier
| Application: |
| This product is applied to compose intelligent grid. It can be used in the power-storage link and balance electric difference caused by day/night and seasons to guarantee grid safety. It’s an important premise for application of renewable energy source and an efficent method for management of grid interaction. It’s the indispensable baisc link for intelligent grid because of regulating and controling power source. |
| Features: |
|
1. Double inversion, charge/discharge
2. Design for grid, and can accept regulation of intelligent grid
3. Floating charge, constant current charge,constant voltage charge, constant power charge,etc.
4. AH discharge, voltage-limited discharge,constant power discharge, constant current discharge,etc.
5. Islanding effect test
6. Islanding system inversion
7. Full isolation between battery and grid
8. Battery electric leakage test
9. Perfect display and communication centralized control function
10. Low voltage ride through and reactive compensation |
| Functions: |
| Three working modes:gird-connection, islanding system and hybrid systems.It takes double inversion as basic feature. It has the function of unit power factor grid connection charge/discharge,independent inversion, acceptance of grid regulation and 、active and reactive power adjustment, dynamic/static grid support and reactive power compensation.In different working modes,it can supply peak load shifting, emergency independent inversion. | |
 |
| |
| Technical parameter: |
| AC side parameters |
DC side parameter |
System |
| Rated output power：500kVA |
Max DC power：550kW |
Max conversion efficiency：97.5%
without transformer |
| Output overload capacity：550kVA |
DC voltage range：450~800V Vdc |
Protection grade：IP20indoor |
| Rated grid voltage：380V effective value |
Max input current：1200A Idc |
Noise： <65dB |
| Allowed grid voltage：340～420V adjustable |
Constant voltage precision：±1% |
Allowed environment temperature：－25℃～＋55℃ |
| Rated grid frequency：50/60Hz |
Constant current precision：±2% |
Cooling method： air cooling |
| Frequency range：±1.5HZ adjustable |
DC voltage ripple：<3% rated load |
Allowed relative humidity：0～95% without condensation |
| THD：<3% rated power |
DC current ripple：<2% rated load |
Allowed max altitude: 5000m over 1000m, need to reduce capacity |
| Power factor：≥0.99 |
|
volume (mm)： 2100×2160×800 without transformer |
|
|
display： touch screen |
|
|
communication：RS232、ethernet MODBUS RTU/TCP | |
